Commercial Dishwashing System Planning
A complete commercial dishwashing system connects each stage of the dishroom into one coordinated workflow. SourcePro can configure dirty-dish collection, sorting, pre-washing, main washing, final rinsing, clean-dish discharge and optional conveying, drying, heat-recovery or water-treatment modules around the actual workload and site layout. The final solution is project-specific. Equipment selection and system length depend on tableware type, peak volume, labour flow, utilities and available space.
Typical Process Flow
Dirty dish collection
Sorting and food-residue removal
Bubble pre-washing or pre-rinse
Rack loading or direct conveyor loading
Main washing
Final rinsing
Optional drying or heat-recovery stage
Clean dish discharge and sorting
| System | Typical modules | Suitable applications |
|---|---|---|
| Compact rack-based system | Pre-wash or inlet table, hood-type dishwasher, clean dish outlet table, optional water softener | Restaurants, smaller hotels, cafeterias and moderate-volume institutional kitchens |
| Rack conveyor system | Sorting and pre-wash section, rack loading, rack conveyor dishwasher, optional drying, rack discharge | Larger hotels, schools, hospitals, staff canteens and higher-throughput dishrooms |

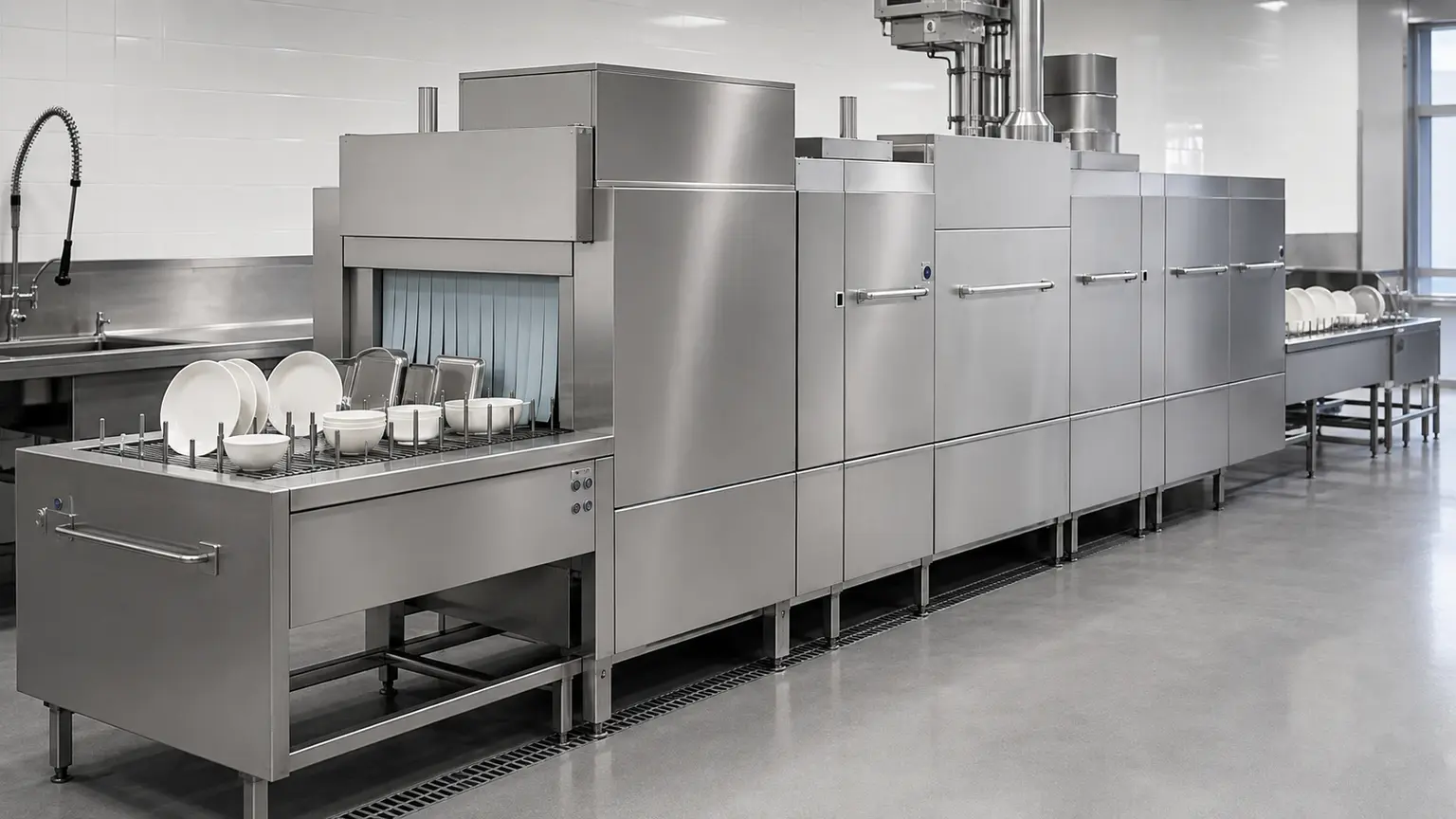

| Flight-type conveyor system | Collection and sorting conveyor, residue removal, direct-loading dishwasher, optional drying or heat recovery, clean-dish sorting | Large canteens, central kitchens and high-volume catering operations |
System Benefits
Coordinate the dishroom as one workflow instead of unrelated machines
Match pre-washing, main washing and discharge capacity
Support straight, L-shaped and other practical layouts
Plan electrical, water, drainage, ventilation and water treatment before installation
Confirm connection heights, rack paths and conveyor transitions before production
Add drying, heat recovery, water softening, conveyors or waste handling only when required
| Stage | Main options | Information used for selection |
|---|---|---|
| Collection | Landing table or collection conveyor | Return route, operator access, tray and cutlery handling |
| Sorting | Sorting table, waste opening or rack-loading area | Tableware categories, waste collection and labour positions |
| Pre-wash | Spray sink, bubble pre-washing machine or ultrasonic unit | Soil load, circulation, heating and filtration |
| Main wash | Hood-type, rack conveyor or flight-type dishwasher | Peak capacity, tableware, utilities and available length |
| Final rinse | Integrated with selected dishwasher | Temperature, water use and local hygiene requirements |
| Drying | Drain area, drying module or heated cabinet | Required dryness, available length and energy source |
| Discharge | Clean dish outlet table or conveyor | Sorting space, rack path and operator positions |
| Water treatment | Water softener or other treatment | Water hardness, scale risk and machine requirement |
Reference Layouts

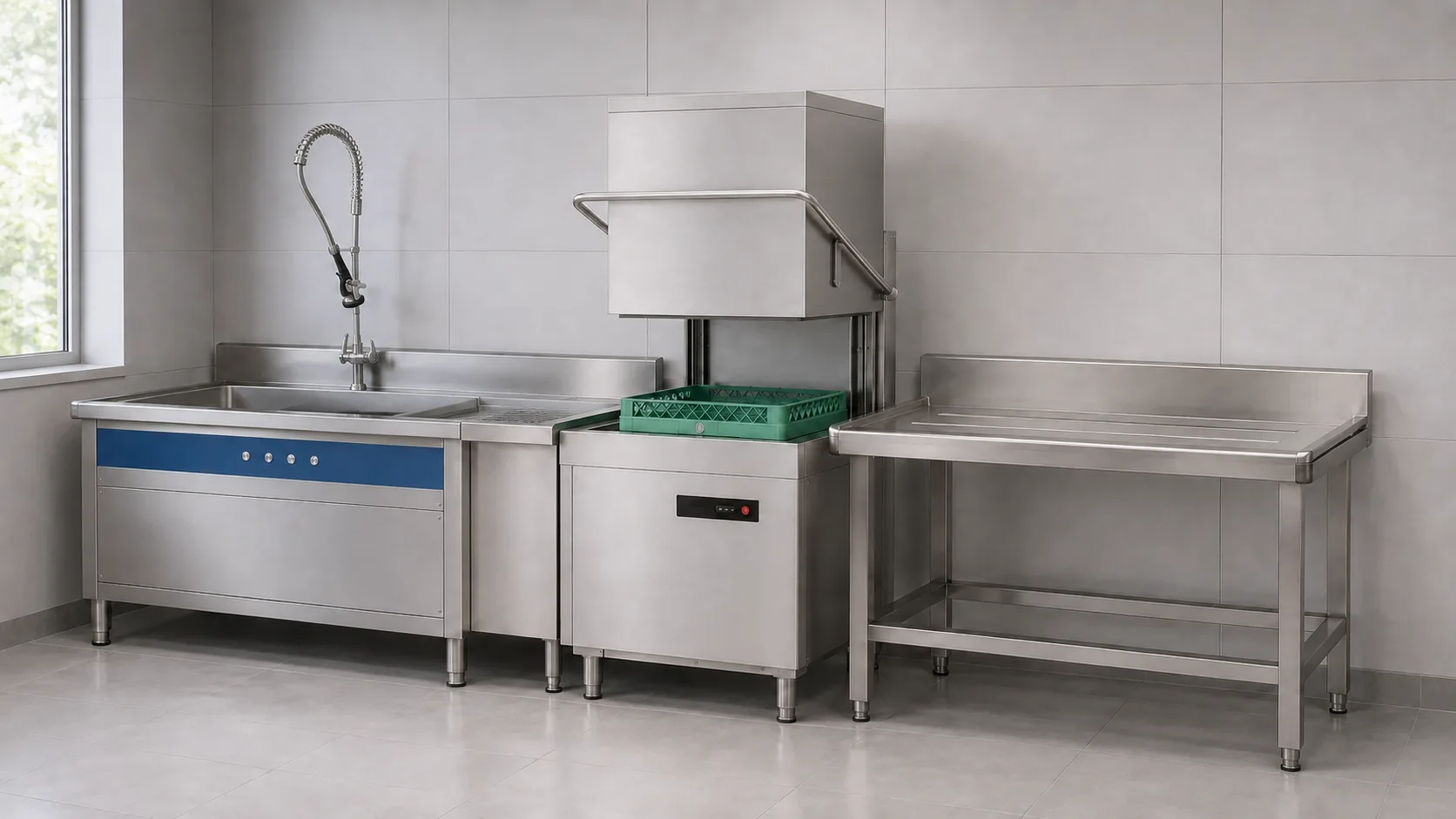

Straight compact line: bubble pre-wash or inlet table → hood-type dishwasher → clean dish outlet table
L-shaped compact line: pre-wash table → hood-type dishwasher → corner-oriented clean dish table
Rack conveyor line: sorting and pre-wash → rack loading → rack conveyor dishwasher → optional drying → rack discharge
Flight-type line: collection and sorting → pre-wash → flight-type dishwasher → optional drying → clean-dish sorting
Project Specification Scope
Each system proposal should state the selected modules, approved layout, working direction, overall dimensions, nominal capacity, peak capacity, electrical load, voltage, frequency, phase, water conditions, drainage points, ventilation requirements, water treatment, module interfaces, materials and required compliance documents.
How SourcePro Supports the Project
Customization and Coordination Considerations
The final solution is project-specific. Equipment selection and system length depend on tableware type, peak volume, labour flow, utilities and available space.
Selected modules, approved layout and working direction
Overall dimensions, nominal capacity and peak capacity
Electrical load, voltage, frequency and phase
Water conditions, drainage points and ventilation requirements
Water treatment, module interfaces, materials and required compliance documents
Customization is reviewed where technically feasible and remains subject to technical review.
Related Products and Resources
Washing Equipment
Loosens attached food residue, captures larger solids in a side filtration section and prepares tableware for the main dishwasher.
View Details
Washing Equipment
A compact rack-based dishwasher for restaurants, hotels and institutional kitchens that need repeatable washing in a practical footprint.
View Details
Washing Equipment

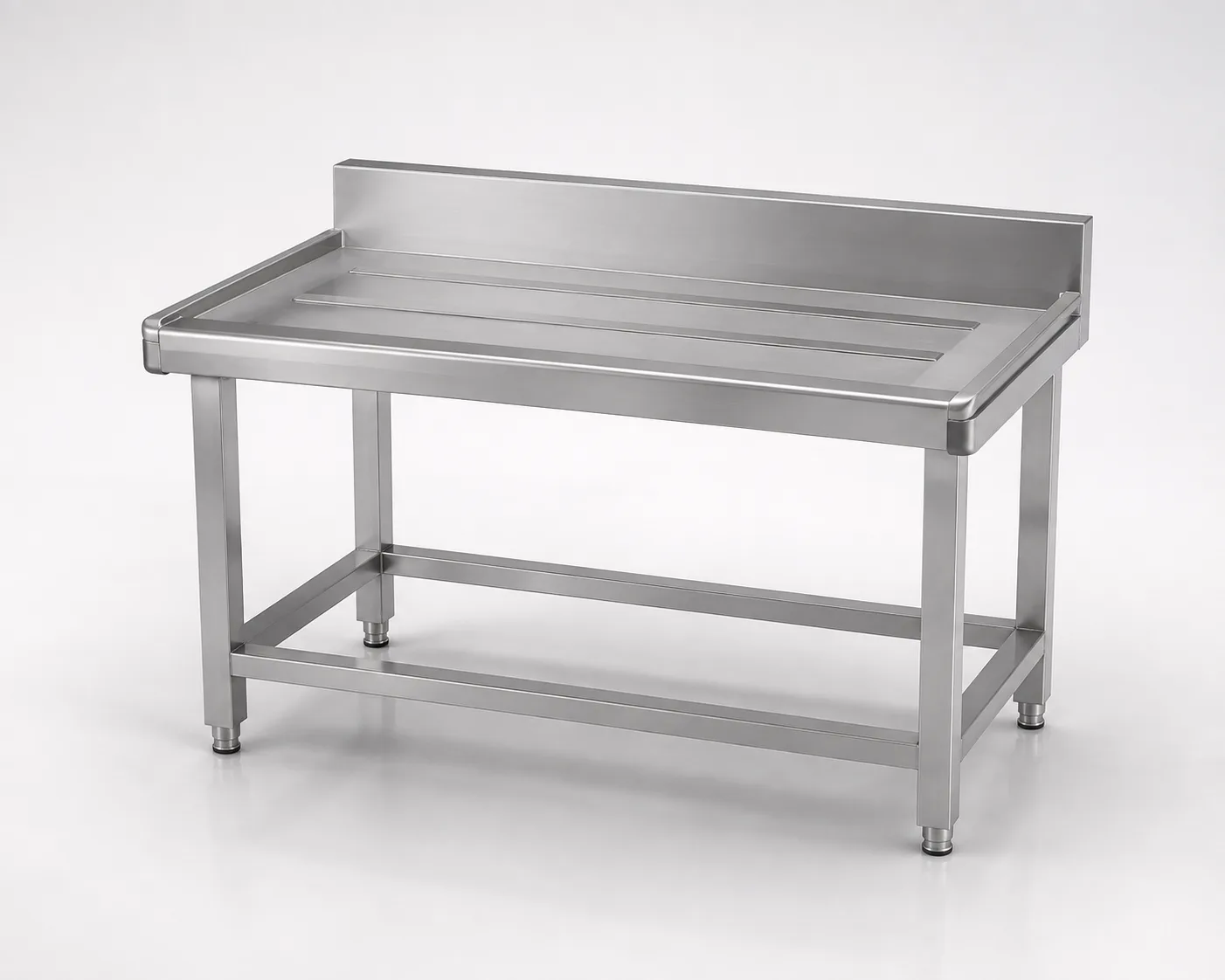

Provides a compatible discharge area after a hood-type dishwasher for rack movement, draining, unloading and clean-dish sorting.
View Details
Washing Equipment
Uses ultrasonic cavitation in a stainless steel tank to support batch cleaning of selected tableware, utensils and cookware.
View Details
Washing Equipment
Configure a rack conveyor dishwasher around rack size, racks per hour, pass height, tunnel modules, utility conditions and dishroom tables.
View Details
Washing Equipment
Plan a high-volume direct-loading flight-type conveyor dishwasher around your ware mix, throughput, wash zones, utilities and dishroom layout.
View DetailsFAQ
The scope is project-specific. It may include collection, sorting, pre-washing, the main dishwasher, clean-dish discharge, racks, conveyors, drying and water-treatment equipment.
Hood-type systems suit moderate rack-based workloads. Rack conveyor systems support higher continuous rack throughput. Flight-type systems are used for large volumes and direct conveyor loading.
Yes. Send a dimensioned layout showing walls, doors, columns, drains, water points, electrical points and ventilation.
Left-to-right and right-to-left arrangements are available on selected equipment. The final working direction is confirmed before production.
Yes. Selected conveyor systems can include a drying stage, and a separate drying or heated disinfection module can also be considered.
The service scope depends on the destination and project. The quotation will state whether supply includes equipment only, remote guidance, local coordination or on-site service.
Solution Inquiry
Send your country, city, project type, meals or seats per service, peak-hour tableware volume, tableware and cookware types, dimensioned dishroom layout, voltage, frequency, phase, water conditions, drainage, ventilation, working direction and required certification.
